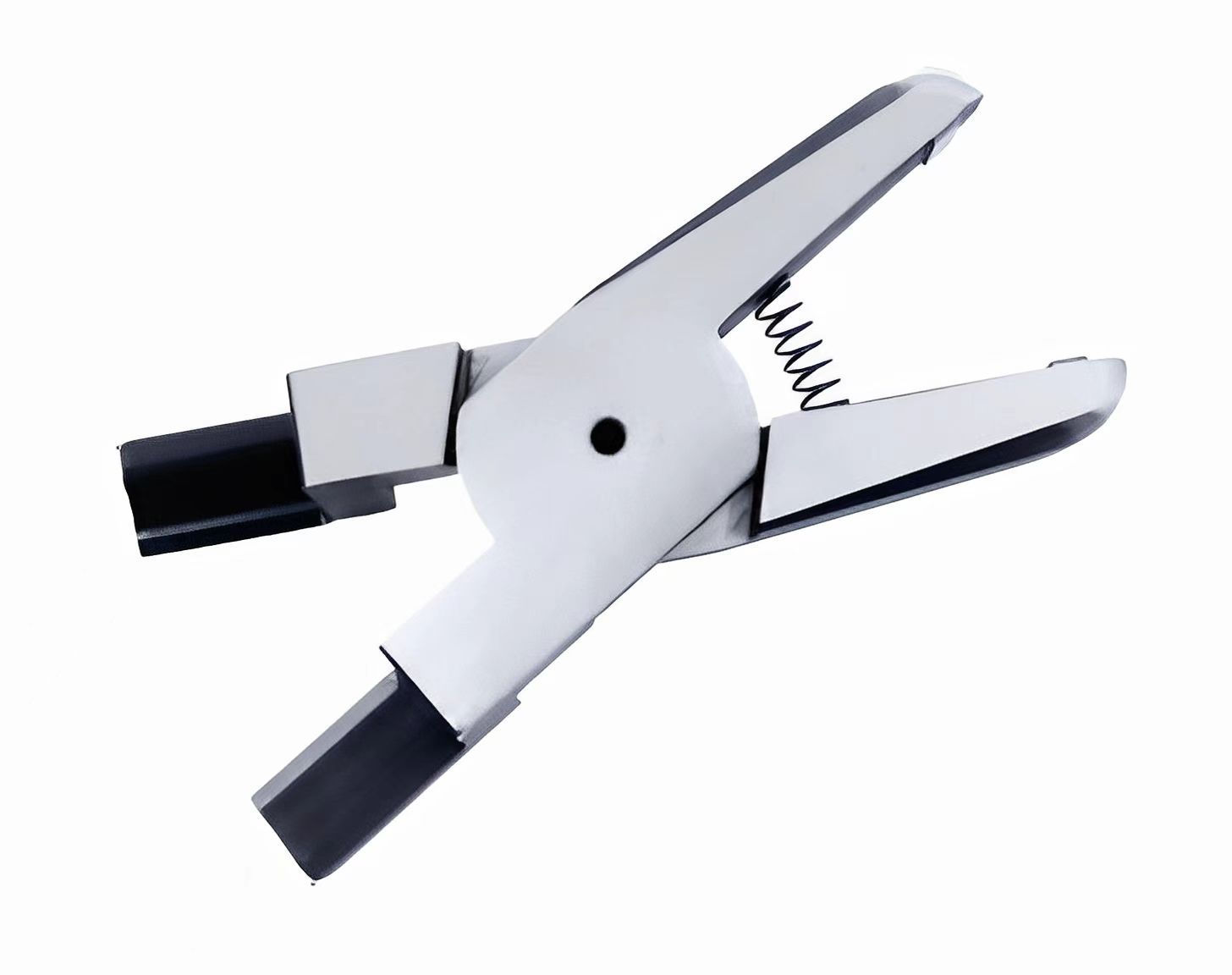

Crank blades for plastic LA5-N05AHC
Pneumatic shears are a type of pneumatic cutting tool specifically integrated at the end of an industrial robot arm (EOAT, End Of Arm Tooling). They utilize compressed air as power and are precisely controlled by the robot controller to perform automated, high-precision, and high-efficiency cutting tasks.
Product Details

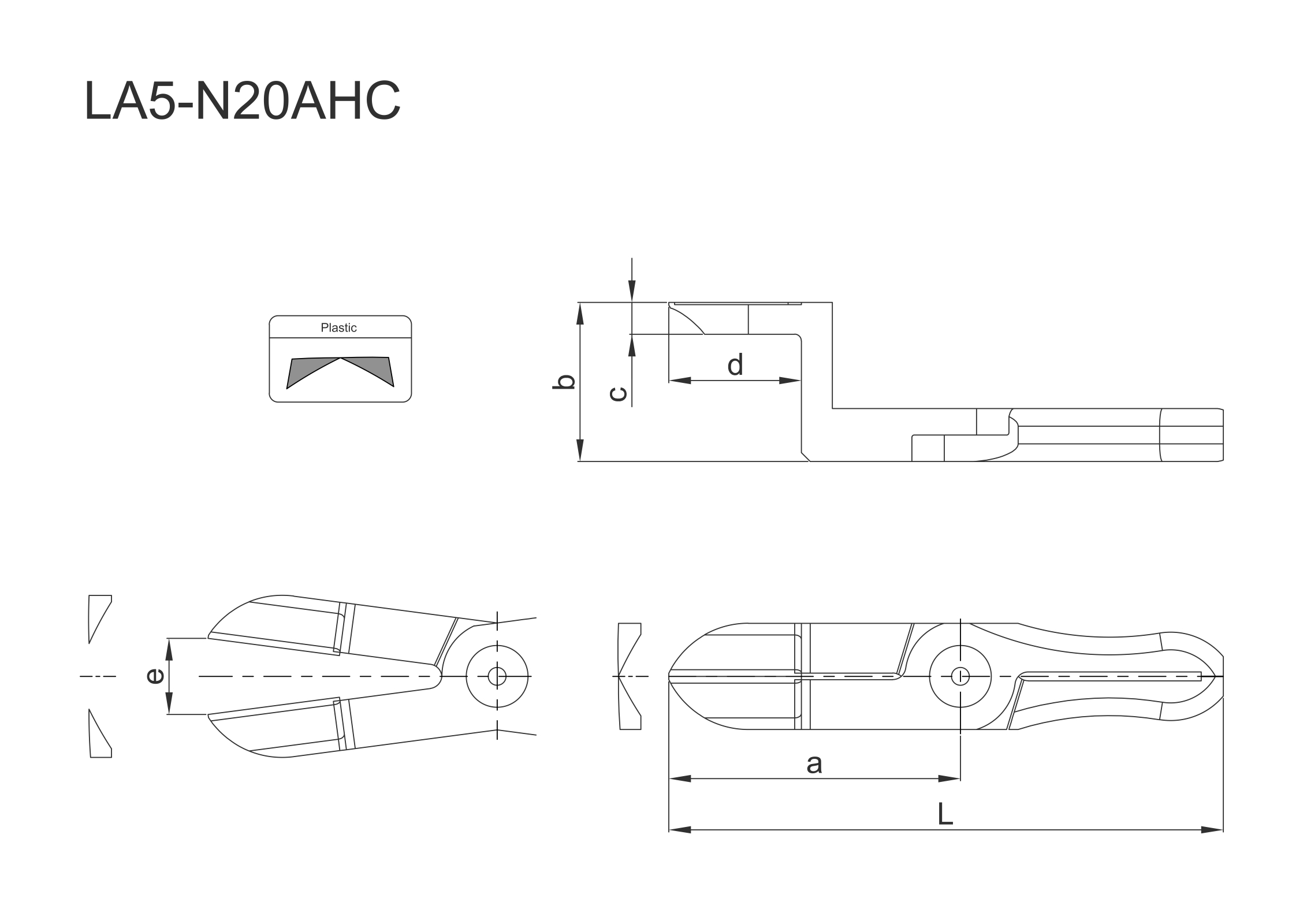

| Model NO. | Size(mm) | Weight(g) | Material | Application model | |||||
| a | b | c | d | e | L | ||||
|
0
|
33 | 24 | 5 | 17 | 6 | 73 | 40 | Special alloy steel | LA5-B5/LA5-C5 |
|
0
|
47 | 29 | 6 | 19 | 9 | 99 | 116 | Special alloy steel | LA5-A10/LA5-B10/LA5-C10 |
|
0
|
66 | 36 | 8 | 30 | 17 | 126 | 230 | Special alloy steel | LA5-A20/LA5-B20/LA5-C20/LA5-A25/LA5-B25 |
|
0
|
76 | 47 | 10 | 33 | 20 | 159 | 450 | Special alloy steel | LA5-A30/LA5-B30/LA5-C30 |
